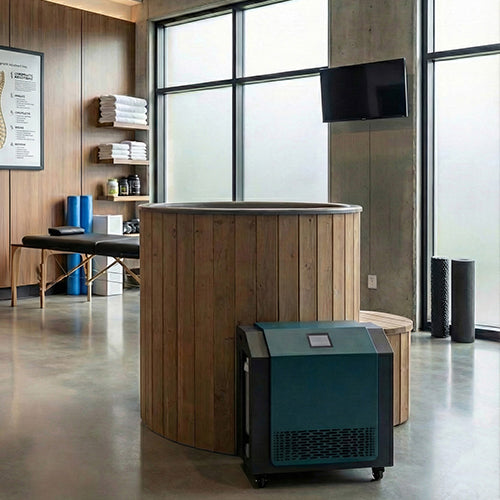

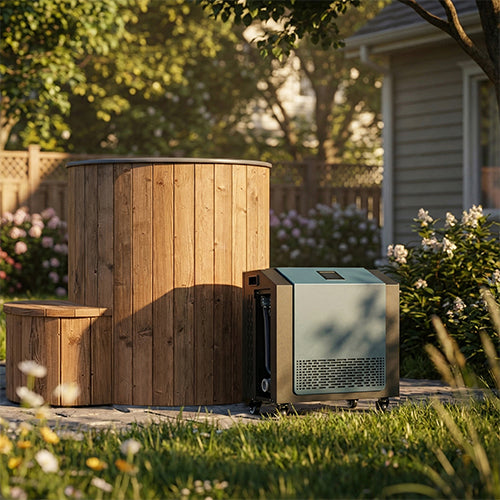

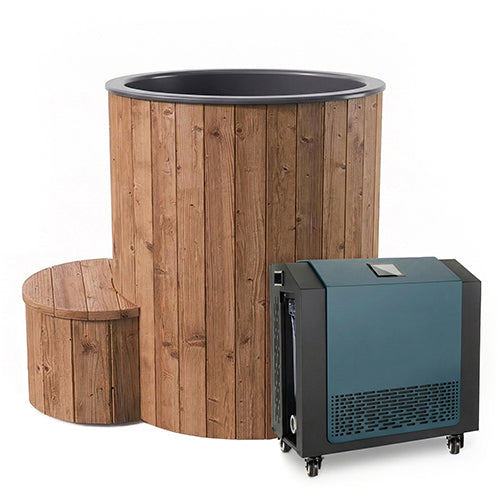

SaunaLife Model S1NC Thermo-Pine Immersion Tub with Chiller/Heater

The Model S1N tub arrives fully assembled and pairs directly with the FDC-1A chiller/heater via 3/4" NPT connections and included water hose lines. The 1.65" thick Thermo-Pine tub surround lasts up to twice as long as cedar with superior thermal resistance. The dark grey contoured fiberglass interior is ergonomically shaped for a single bather with 124 gallons of water capacity. Matching Thermo-Pine stairs and integrated drainage are included. The FDC-1A is engineered for quiet, efficient operation with a built-in ozone filtration system, an 88W DC circulating pump, and plug-and-play setup from a standard 110V outlet. Full temperature control is available on the unit or through the iOS and Android app from anywhere.

Tub key features

• Fully assembled — no installation required
• Thermo-Pine tub surround — lasts up to 2x longer than cedar, 1.65" thick
• Superior thermal resistance for cold and heat retention
• Dark grey contoured fiberglass interior — ergonomically shaped for full-body immersion
• 124-gallon water capacity

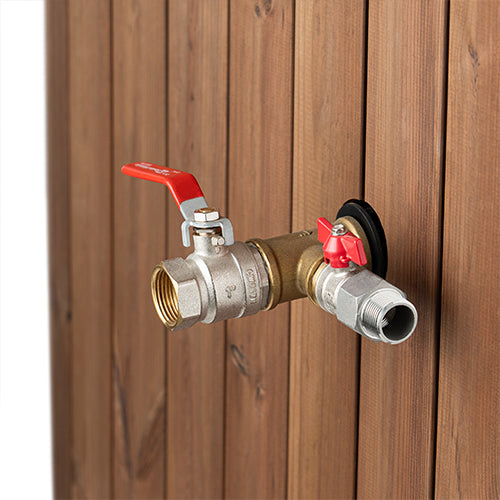

• Built-in chiller connections — 3/4" NPT fittings
• Matching Thermo-Pine round deluxe stairs

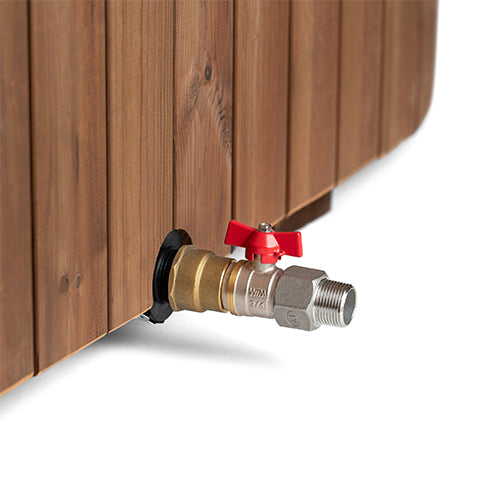

• Integrated 1" drainage
• Designed by SaunaLife, handcrafted in Northern Europe

FDC-1A chiller/heater key features

• Temperature range 32.5°F–108°F — cold plunge and hot immersion
• Cooling capacity 2.81kW / heating capacity 3.38kW
• On-unit LCD touchscreen + iOS and Android app control
• Built-in ozone generator for continuous water sanitation
• 88W DC circulating pump
• Installed external filter
• Plug-and-play — standard 110–120V outlet with GFCI cord and plug
• Quiet operation
• Compact design — fits most spaces
• Refrigerant: R410A

Model S1N Tub

Brand: SaunaLife
Model: MODEL S1N
Material: Thermo-Pine
Capacity: 1 person
Water Capacity: 124 gallons
Interior Dimensions: 34.4" Diameter × 36"H (87 × 91 cm)
Exterior Dimensions: 40" Diameter × 41.3"H (102 × 105 cm)
Wall Thickness: 0.7" (1.7 cm) Thermowood
Foundation Beams: 3.94" × 3.94" (10 × 10 cm)
Chiller Connections: 3/4" (2 cm) NPT
Drainage: 1" (3 cm)
Product Weight: 124 lbs (56.2 kg)
Filled Weight: 1,158 lbs (525.2 kg)

FDC-1A Chiller/Heater

Model: FDC-1A
Temperature Range: 32.5°F–108°F (0.3°C–42°C)
Cooling Capacity: 2.81kW
Heating Capacity: 3.38kW
Working Ambient Temperature: 59–109°F cooling / 59–95°F heating
Circulating Pump: 88W DC motor
Disinfection: Ozone generator
Filter: Installed external
WiFi Control: iOS and Android app
Electrical Requirements: 110–120V~ / 60Hz
Electrical Safety: GFCI power supply cord and plug
Refrigerant: R410A
Dimensions: 21.3"W × 15.4"D × 25"H (54.1 × 39.1 × 63.5 cm)
Weight: 103 lbs (46.7 kg)
Warranty: 2-year limited (consumer use)

Model S1N Tub

• Fully assembled Thermo-Pine immersion tub
• Round deluxe Thermo-Pine stairs
• Fiberglass insert
• Integrated 1" drainage
• Built-in 3/4" NPT chiller connections
• Installation instructions

FDC-1A Chiller/Heater

• FDC-1A chiller/heater unit
• 5" filter assembly
• 5" filters
• Main filter wrench
• Secondary filter wrench
• Secondary filter screen
• LED remote
• Water hose lines (x2)
• Installation and operation manual

The Model S1N tub arrives fully assembled, no tub installation required. Connect the FDC-1A chiller/heater to the tub via the included 3/4" NPT water hose lines. The FDC-1A plugs into a standard 110–120V outlet with GFCI cord; no dedicated circuit or electrician required. Download the iOS or Android app for remote temperature control and session management. Note: filled weight is 1,158 lbs; ensure your floor or surface can support this load before placing indoors. Refer to the included installation and operation manual for full setup guidance.

Tub Installation Manual

Chiller Operation Manual

2-year limited warranty (consumer use) on the FDC-1A chiller/heater. Covers manufacturing defects in materials and workmanship under normal residential use. Does not cover damage from improper installation, misuse, neglect, or unauthorized modifications. Contact support@marterraelements.com with your order number, photos, and a description of the issue. We aim to respond within 2–3 business days. Warranty is non-transferable and requires original proof of purchase.
